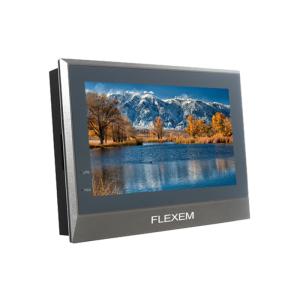

* 7.0" 800×480 TFT LCD.
* Metal enclosure and with only 38mm thickness.
* Industrial Isolated Power Supply module, 4 Serial Ports.
* USB Host, Supporting USB Disk/USB Keyboard/Mouse expanded device etc.
* The mainboard is with spray coating treatment, adapt to harsh industrial environment.
* Complied with CE.
| Memory | 128M Flash+128M DDR3 |
| Download Project | USB Disk/USB Device/Ethernet/SD Card |
| Operating Temperature | -20～70℃ |
| Ethernet | 10M/100M Ethernet |
| Input Power | DC 24V , Input Range: DC 18V～28V |
| Shell Material | Front Cover Made By Aluminum, And The Surface With Hard Oxide Treatment; Back Made By Stell And The Surface With Baking Finish Treatment |
| 1. Power Terminals | ||
| Pin1 | DC24V |  |
| Pin2 | 0V | |
| Pin3 | FG | |
| 2. COM1/COM3 | ||
| Pin1 | Rx-(B) | |
| Pin2 | RxD_PLC (COM1 RS232) | |
| Pin3 | TxD_PLC (COM1 RS232) | |
| Pin4 | Tx- | |
| Pin5 | GND | |
| Pin6 | Rx+(A) | |
| Pin7 | RxD_PLC(COM3 RS232) | |
| Pin8 | TXD_PLC(COM3 RS232) | |
| Pin9 | Tx+ | |
| 3. COM2/COM4 | ||
| Pin1 | Rx-(B) | |
| Pin2 | RxD_PLC (COM2 RS232) | |
| Pin3 | TxD_PLC (COM2 RS232) | |
| Pin4 | Tx- | |
| Pin5 | GND | |
| Pin6 | Rx+(A) | |
| Pin7 | RxD_PLC(COM4 RS232) | |
| Pin8 | TXD_PLC(COM4 RS232) | |
| Pin9 | Tx+ | |
